1080P 7" DVR Monitor Wireless RV Backup Camera System

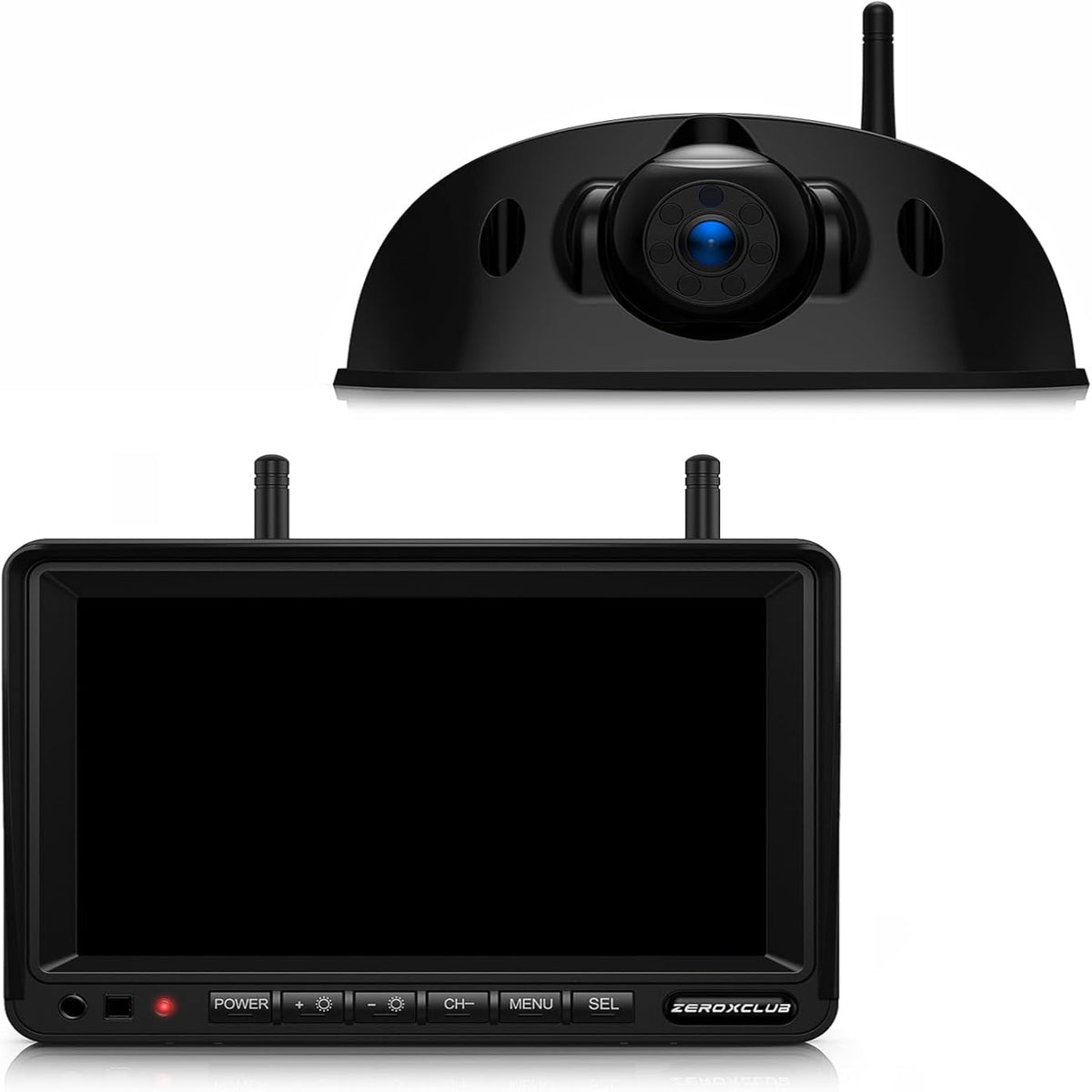

1080P 7" DVR Monitor Wireless RV Backup Camera System provides wireless video transmission between the rear camera and monitor for RV, trailer, and vehicle monitoring. The system features a 7-inch IPS display, 1080p video capture, a 120-degree wide-angle camera, infrared night vision, adjustable parking guidelines, loop recording, and support for viewing up to four cameras. The camera and monitor communicate wirelessly for video transmission but require wired power connections.

Specifications

• Item Type: Wireless RV Backup Camera

• Screen Size: 7 inches

• Display Technology: LCD

• Display Type: IPS

• Video Capture Resolution: 1080p

• Effective Still Resolution: 1080 pixels

• Video Capture Format: MP4

• Optical Sensor Technology: Infrared

• Optical Sensor Size: 1/3 inch

• Lens: Wide Angle

• Lens Type: Wide Angle

• Real Angle of View: 120 degrees

• Field of View: 120 degrees

• Connector Type: 3.5mm male jack, DC

• Wireless Communication: 2.4GHz

• Wireless Range: Up to 100 feet

• Camera Rating: IP69K waterproof

• Infrared Lights: 6

• Camera Angle Adjustment: Up or down 45°

• Camera Support: Up to 4 cameras

• Memory Card Support: Up to 128GB SD card; SD card not included

• Installation Type: Surface Mount

• Compatible Camera: BW7M Camera

• Item Dimensions: 3.5"L x 2.5"W x 2"H

• Product Dimensions: 3.5"L x 2.5"W x 2"H

• Number of Items: 1

• Unit Count: 1 Count

Features

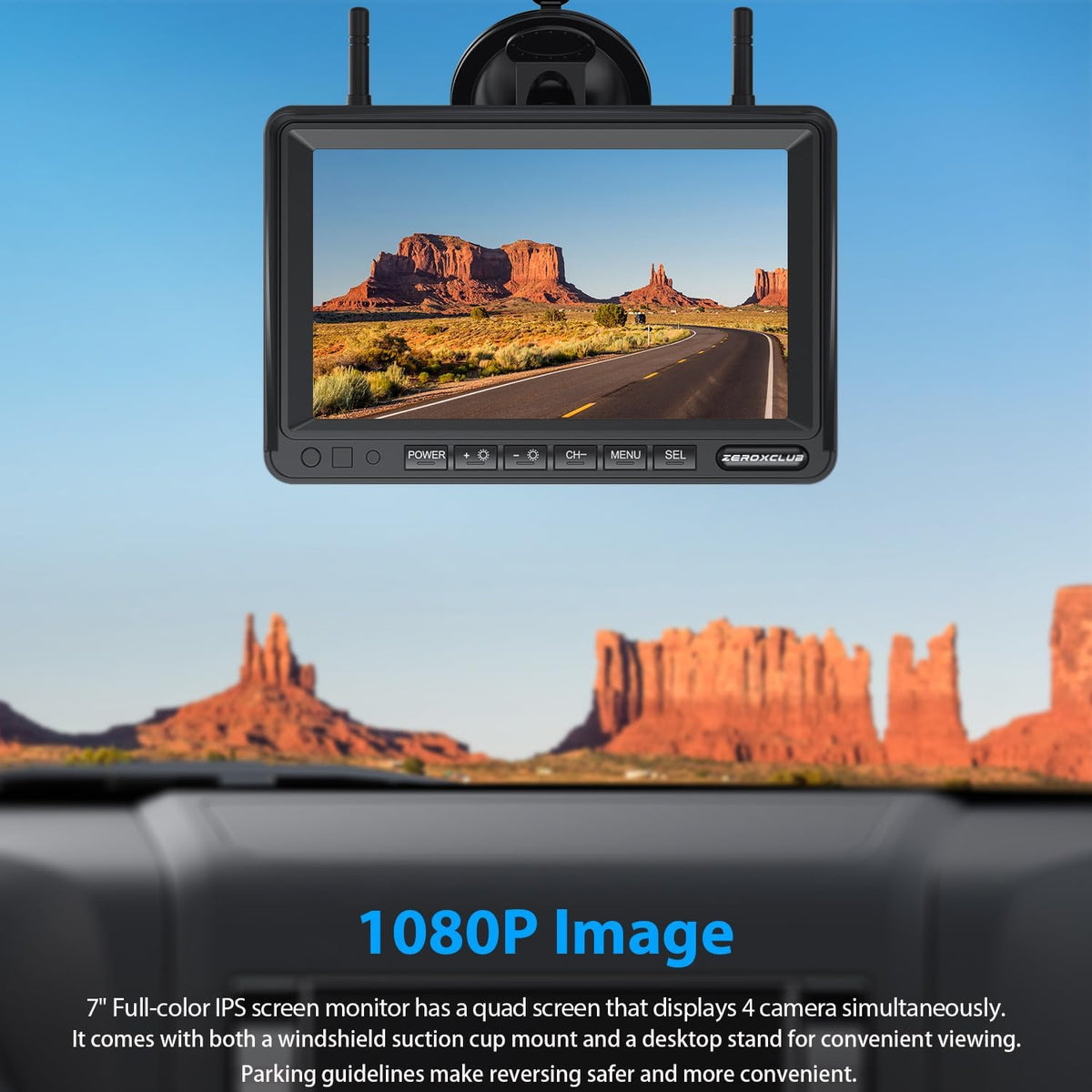

• 7-Inch IPS Monitor: Full-color 7-inch IPS screen displays images from up to four cameras and supports split-screen viewing when additional compatible cameras are connected.

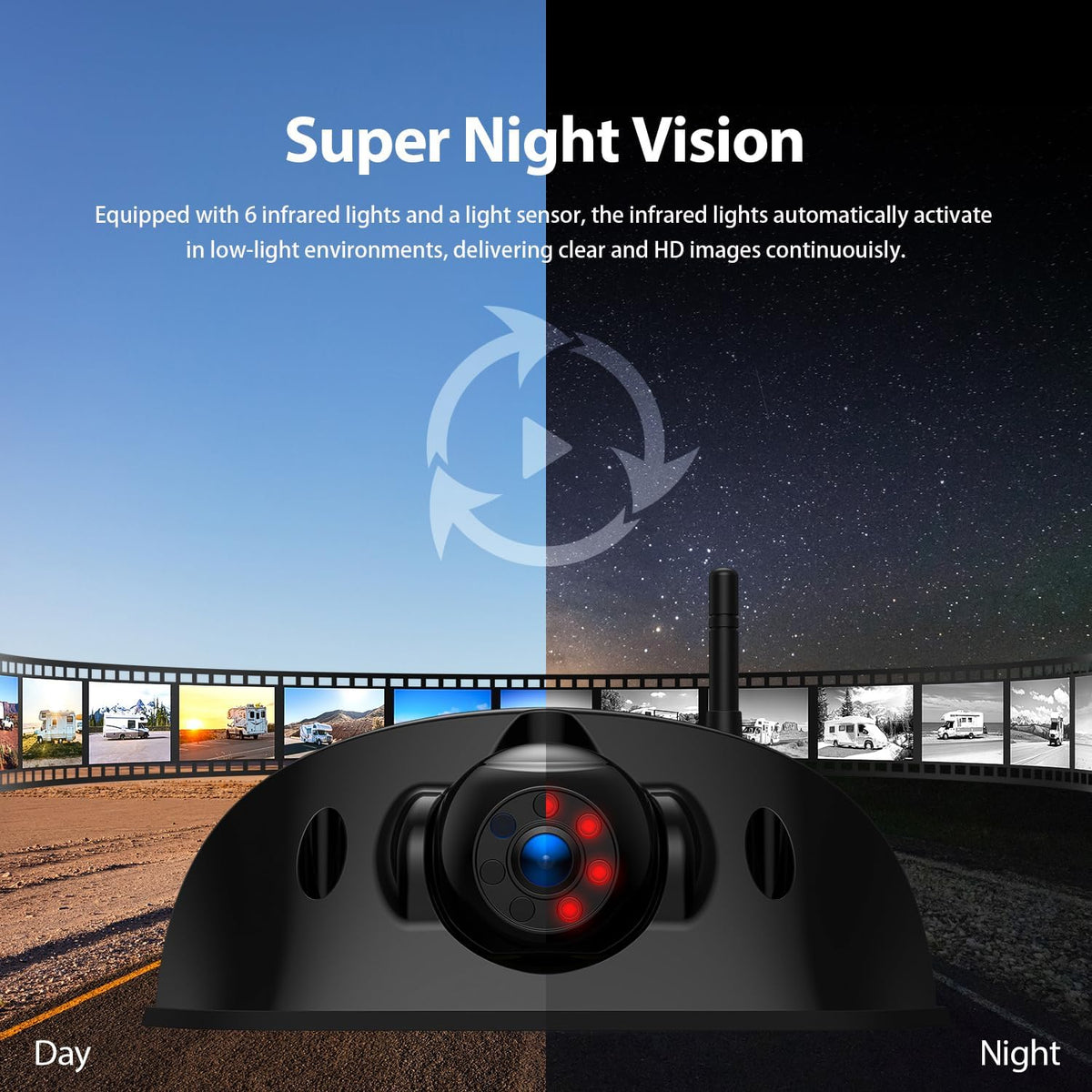

• Infrared Night Vision: Six infrared lights and a light sensor automatically activate the infrared lights in low-light environments.

• 120° Wide-Angle View: Provides a 120-degree rear viewing angle.

• Adjustable Camera Angle: Camera lens can be adjusted up or down 45° to change the viewing angle.

• Adjustable Parking Guidelines: Parking guidelines provide a visual reference while reversing.

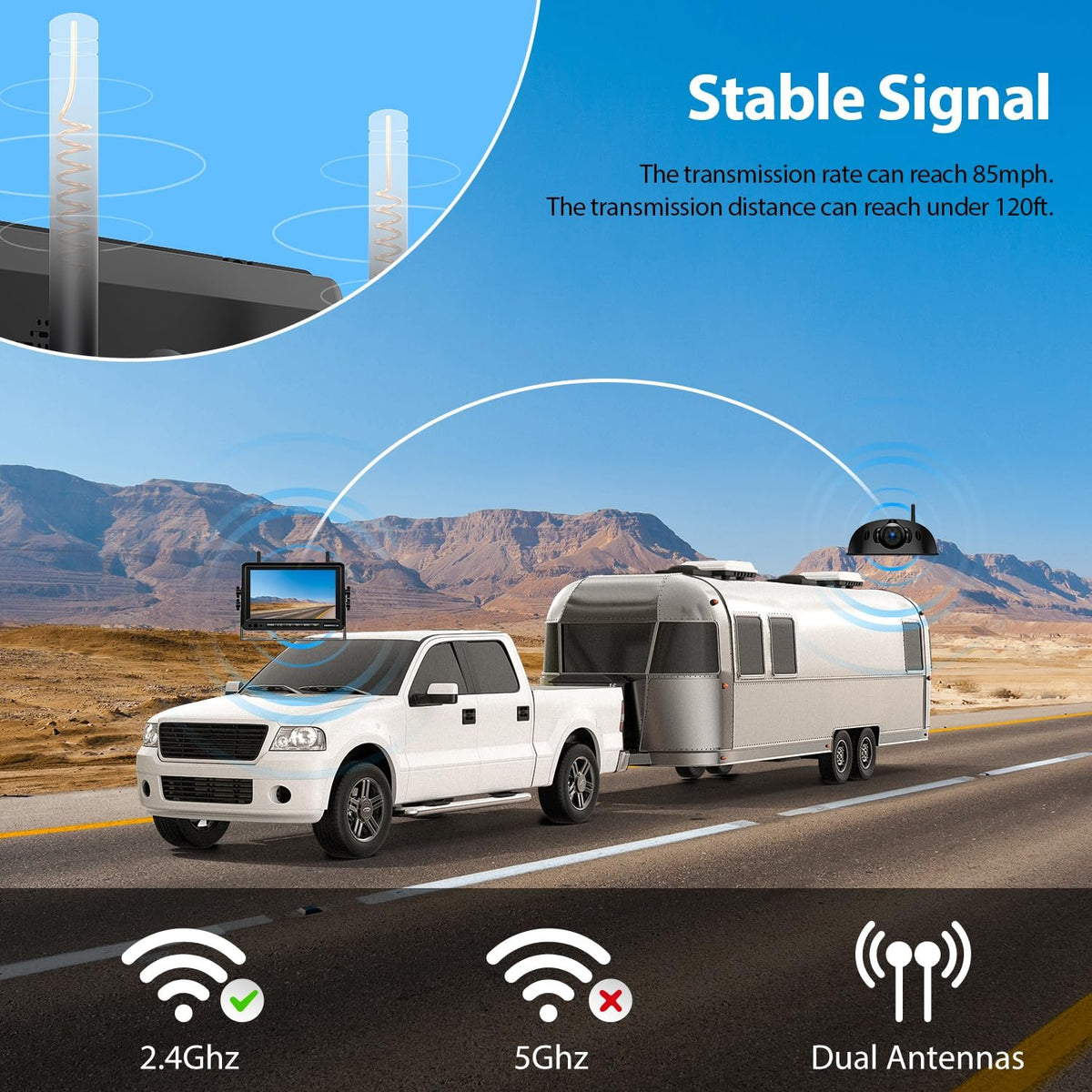

• 2.4GHz Wireless Transmission: Wireless communication transmits video between the camera and monitor without requiring a video cable.

• Dual-Antenna Reception: Supports wireless video reception at distances of up to 100 feet.

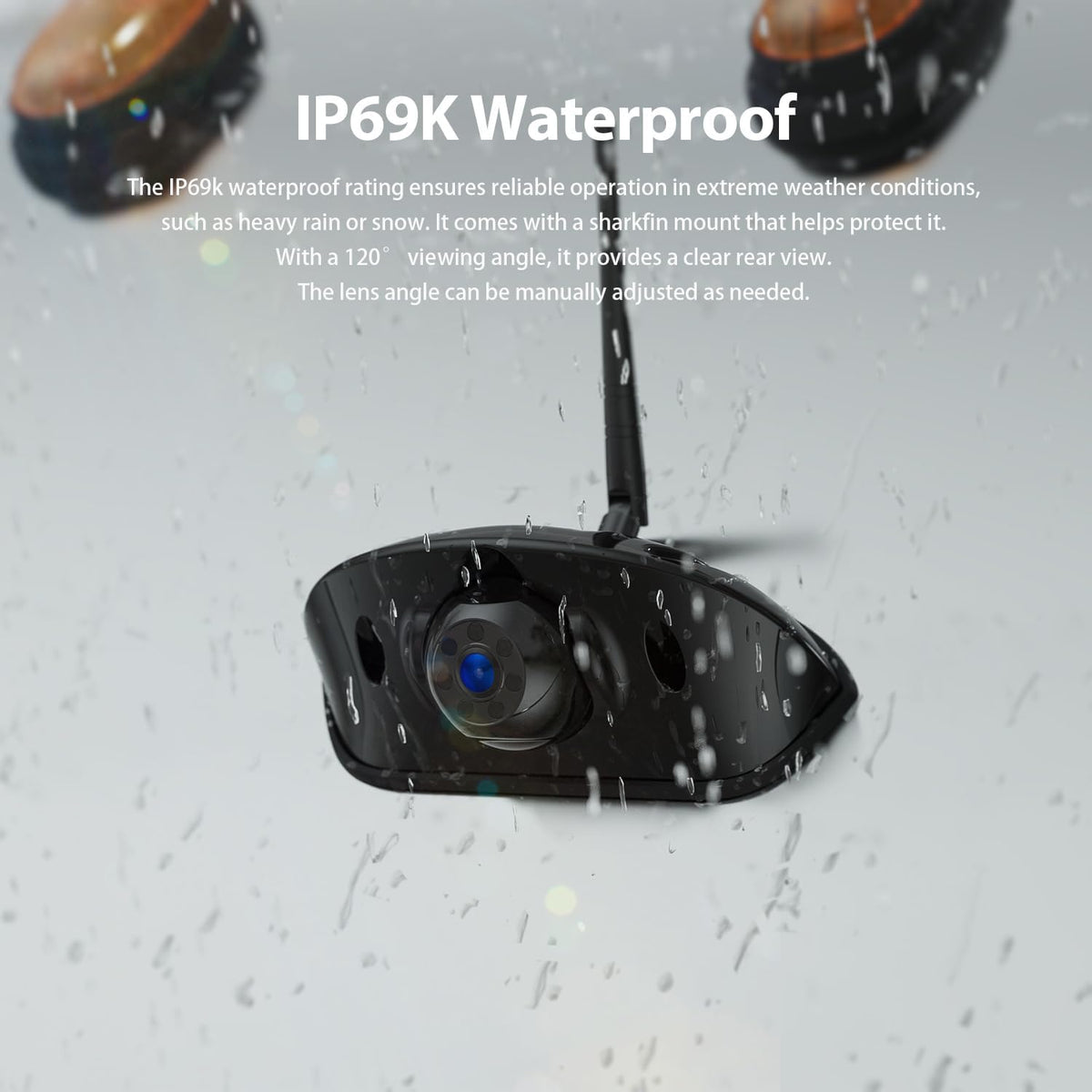

• IP69K Waterproof Camera: The camera is rated IP69K waterproof and is designed for operation in weather conditions including rain and snow.

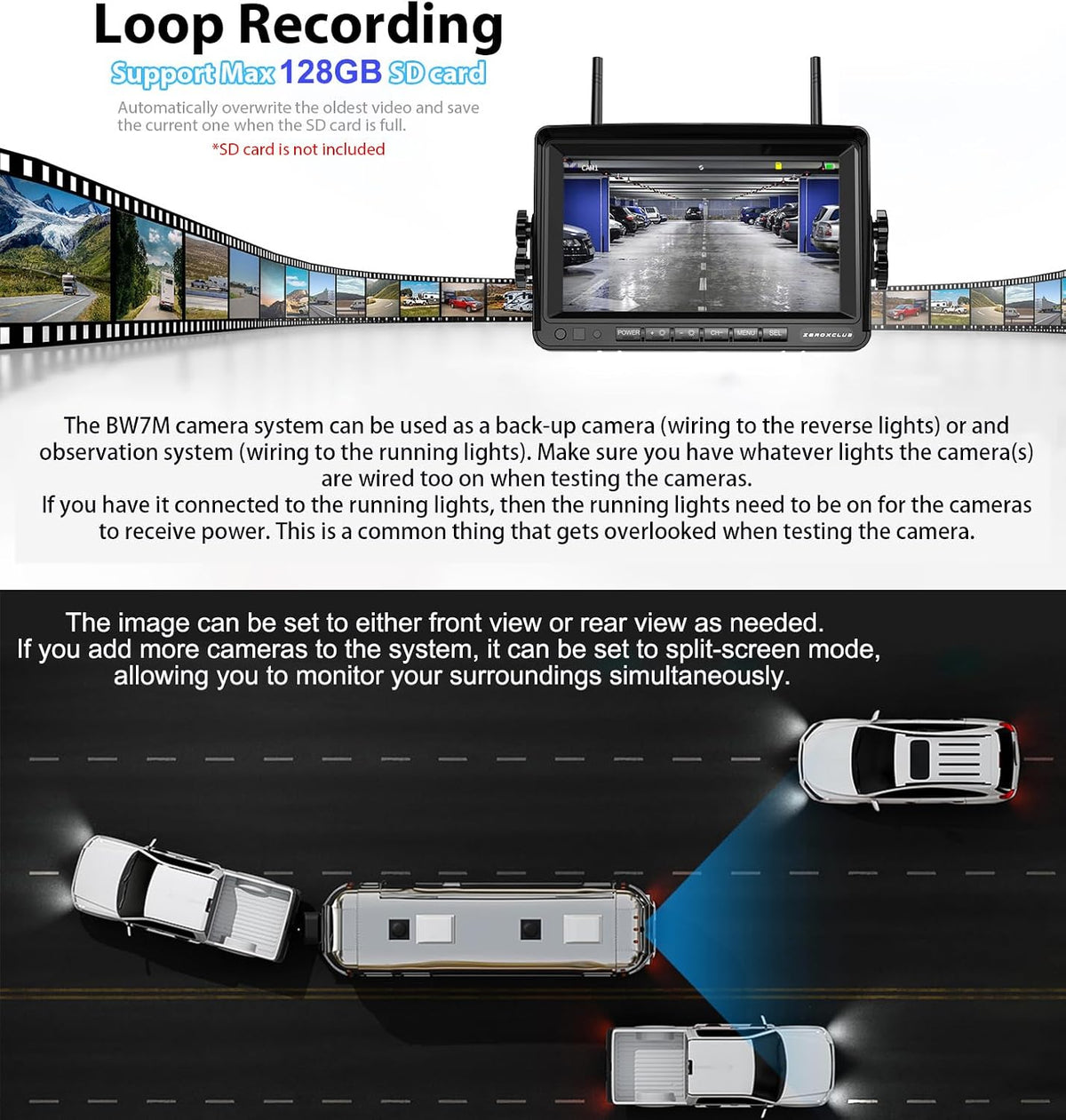

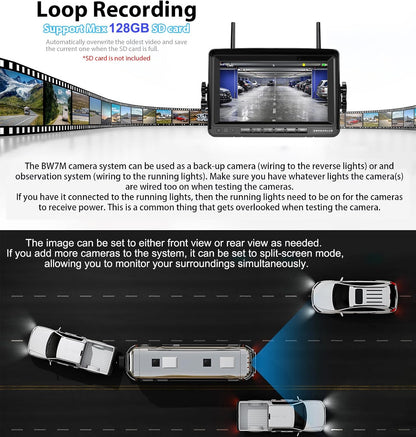

• Loop Recording: Supports loop recording when an SD card is installed, with memory card capacity up to 128GB.

• Selectable Image View: Image display can be configured for front or rear viewing as needed.

• Expandable Viewing: Additional compatible cameras can be added to enable split-screen monitoring of multiple viewing areas.

Installation

• Power Requirement: Wireless operation refers to video transmission only. Both the camera and monitor require wired power connections.

• Camera Power: The camera requires connection to a 12V power source.

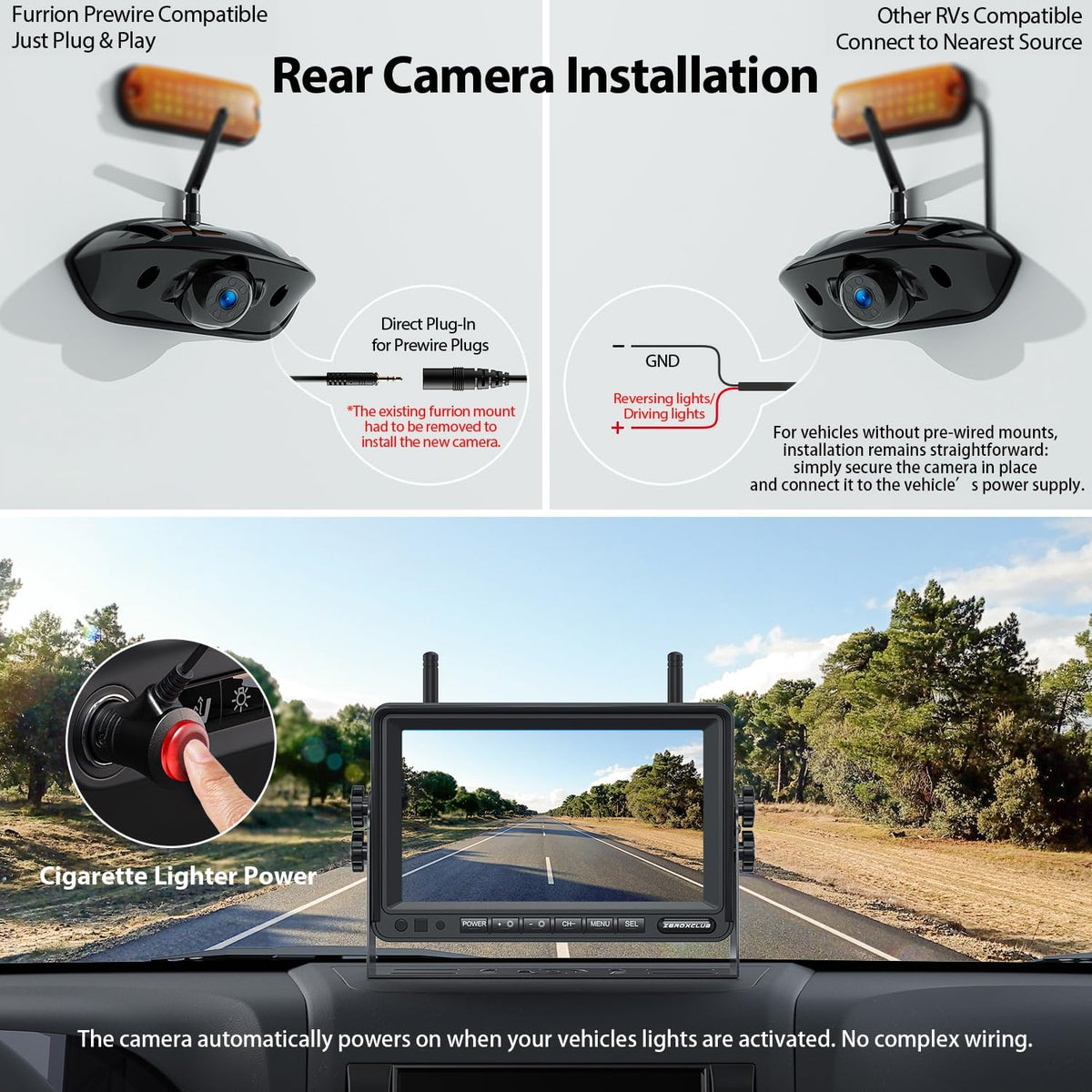

• Pre-Wired Installation: On compatible pre-wired trailers, the camera connects to the pre-wired jack and may receive power through the vehicle's running-light circuit.

• Running-Light Power: If the preinstalled camera mount is connected to the running-light circuit, the vehicle lights must be turned on for the camera to receive power.

• Backup Camera Setup: Connect the camera to the reverse-light circuit for backup-camera operation.

• Observation Setup: Connect the camera to the running-light circuit for observation-system operation.

• Non-Pre-Wired Vehicles: Secure the camera in position and connect it to the vehicle's power supply.

• Monitor Mounting: Includes both a windshield suction cup mount and desktop stand.

• PWM Power: Some vehicles using PWM power may experience flickering, signal loss, or screen freezing. A compatible 7-way adapter or 12V PWM filter may be used; these accessories are not included.

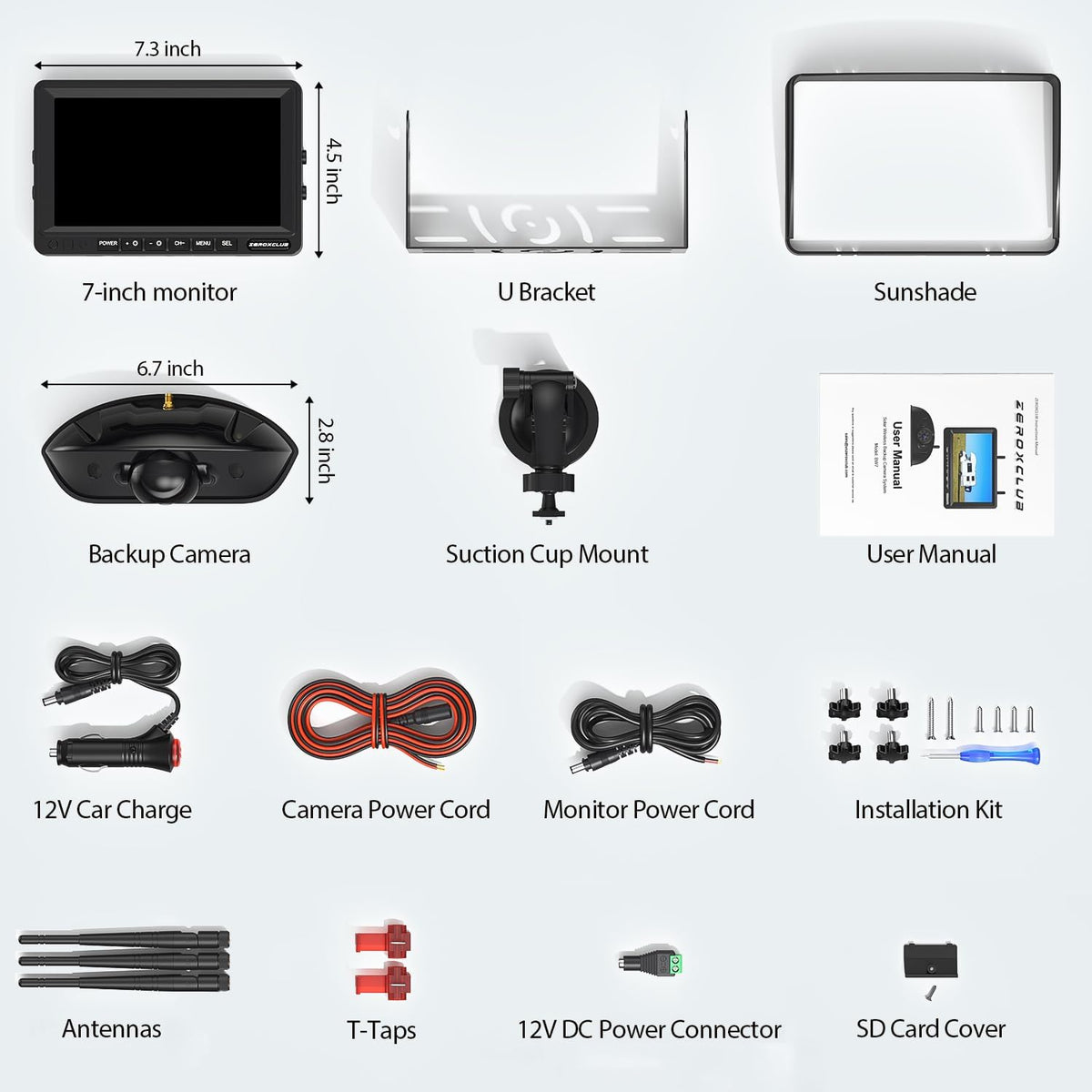

Package Contents

• Camera: 1

• Monitor: 1
