Wireless Backup Camera for Trucks, RV Backup Camera with HD Monitor

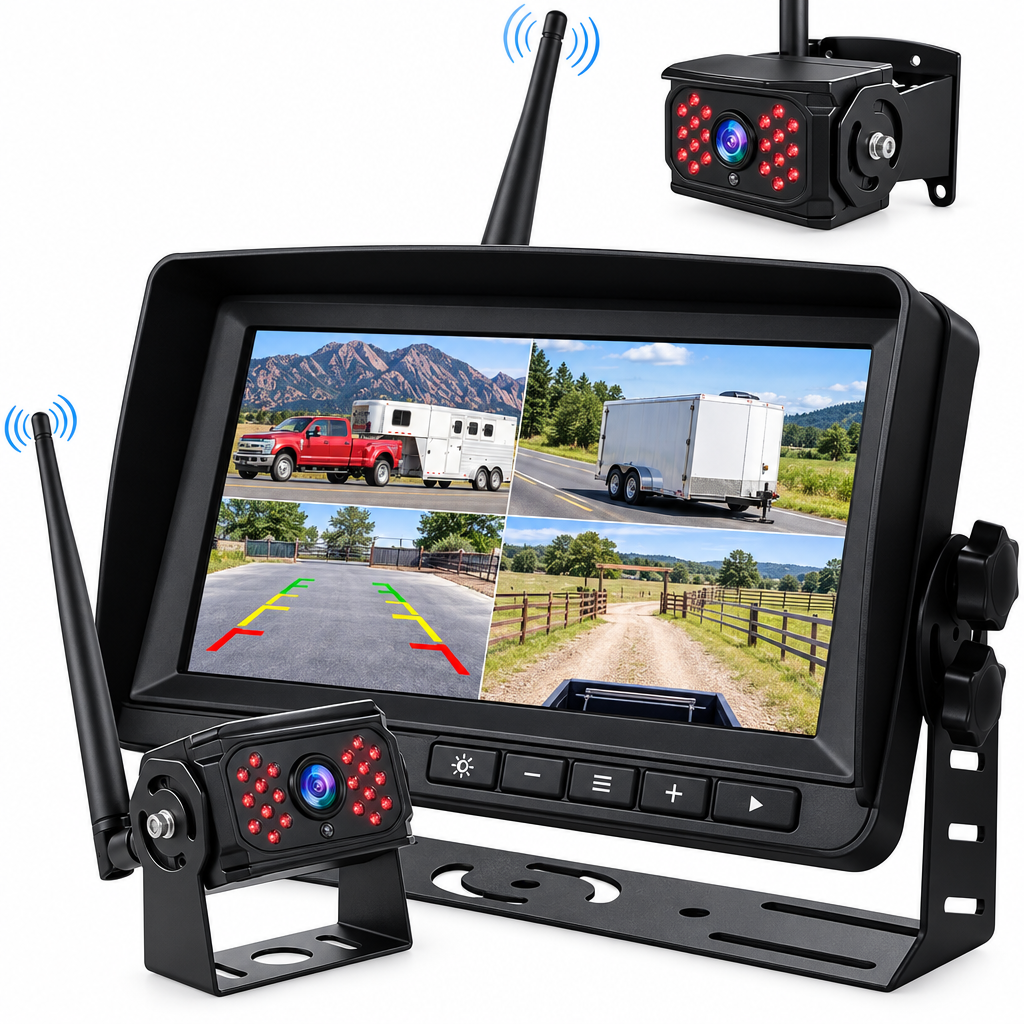

Wireless Backup Camera for Trucks, RV Backup Camera with HD Monitor provides a wireless video monitoring system for RVs, trucks, trailers, campers, cars, 5th wheels, boats, buses, and motorhomes. It features a 7-inch HD monitor, 720p video capture, CMOS imaging, a 120-degree wide-angle view, up to 984FT/300M signal range in open areas, infrared night vision, four-channel viewing, DVR loop recording, customizable parking lines, and an IP69K waterproof camera. Wireless transmission applies to the video signal only; the monitor and camera require separate wired power connections.

Specifications

• Screen Size: 7 inches

• Display Technology: LCD

• Video Capture Resolution: 720p

• Effective Still Resolution: 720 pixels

• Optical Sensor Technology: CMOS

• Optical Sensor Size: 1/3 inch

• Lens Type: Wide Angle

• Real Angle of View: 120 degrees

• Signal Range: Up to 984FT/300M in open areas

• Connector Type: 2.4GHz Wireless Signal

• Signal Transmission: 2.4GHz FM Encryption

• Voltage: 12 volts

• Supported Input: DC 10V - 32V

• Camera Rating: IP69K waterproof

• Night Vision: Automatic infrared night vision with 20 built-in infrared lights

• Video Channels: 4 channels

• Storage Card Support: Micro SD card from 8GB to 128GB for recording function; card not included

• Installation Type: Dashboard Mount (Surface Mount), Suction Cup Mount (on windshield)

• Compatible Devices: Pre-Wired RV Systems, RV Trailer, Truck, Camper, Car, Bus, Motorhome, 5th Wheels, Boat

• Item Dimensions: 4.3"L x 0.7"W x 6.85"H

• Item Weight: 3 pounds

• Model Number: VT070

• Mfr Part Number: VT070

• Number of Packs: 1

• Number of Items: 1

• Unit Count: 1 Count

Features

• Long-Range Wireless Transmission: Provides wireless video signal transmission up to 984FT/300M in open areas using CMOS image sensor technology and 2.4GHz FM encryption.

• Four-Channel Viewing: The display supports four video channels from CH1 through CH4 and can accommodate up to four cameras.

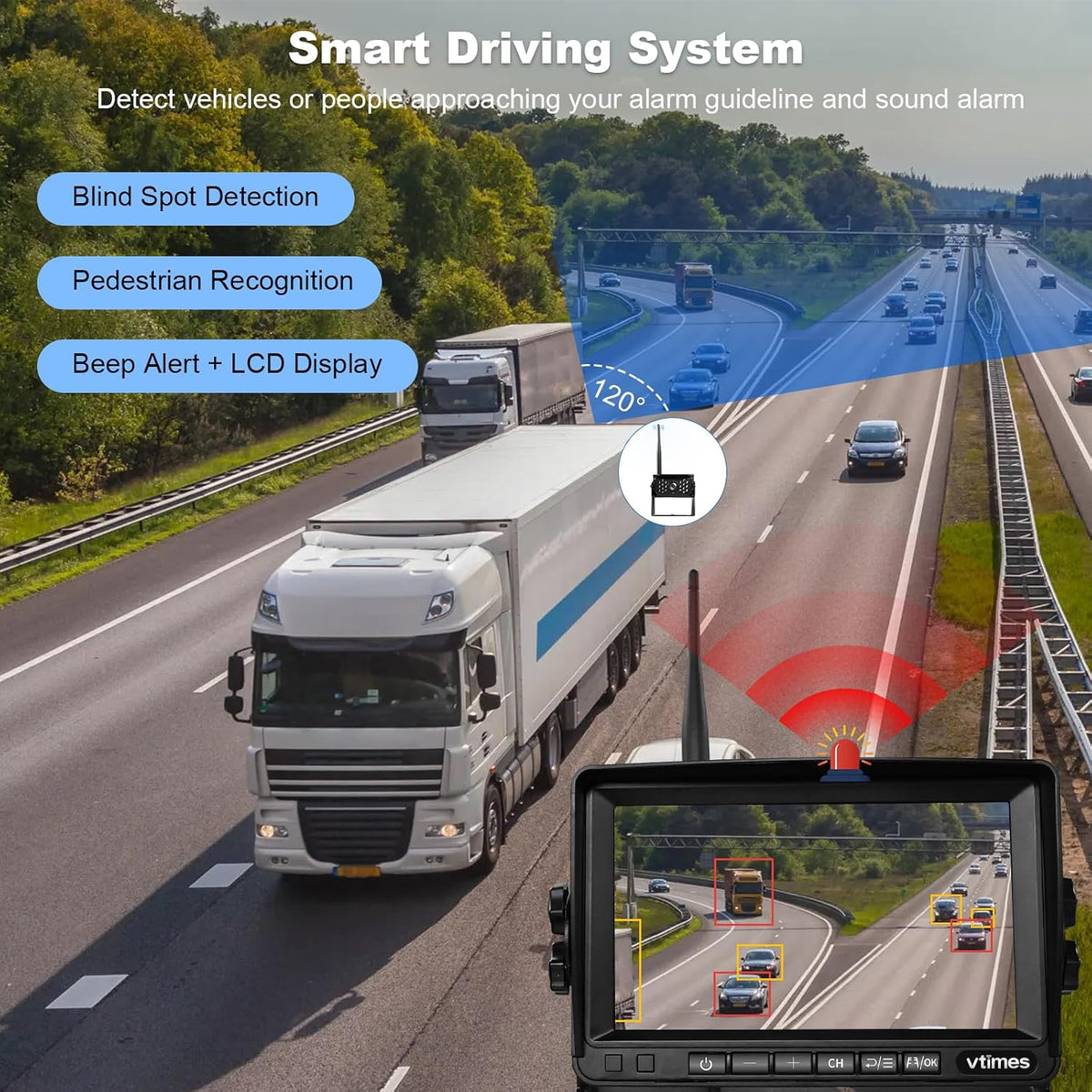

• BSD Function: Blind Spot Detection can be turned on or off. When activated, the system can highlight detected objects or people on the monitor and provide an audible alert.

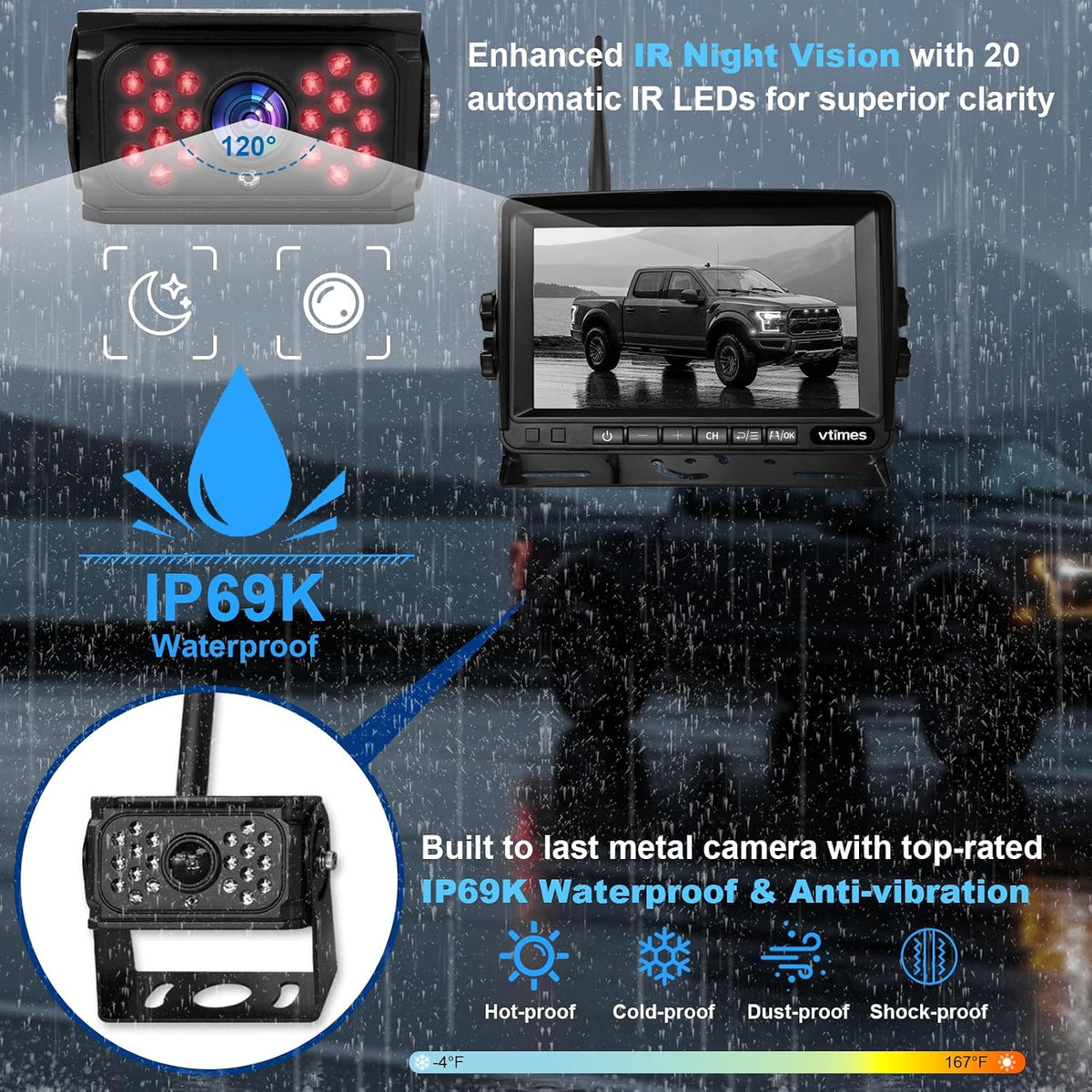

• Automatic Night Vision: 20 built-in infrared lights support nighttime viewing.

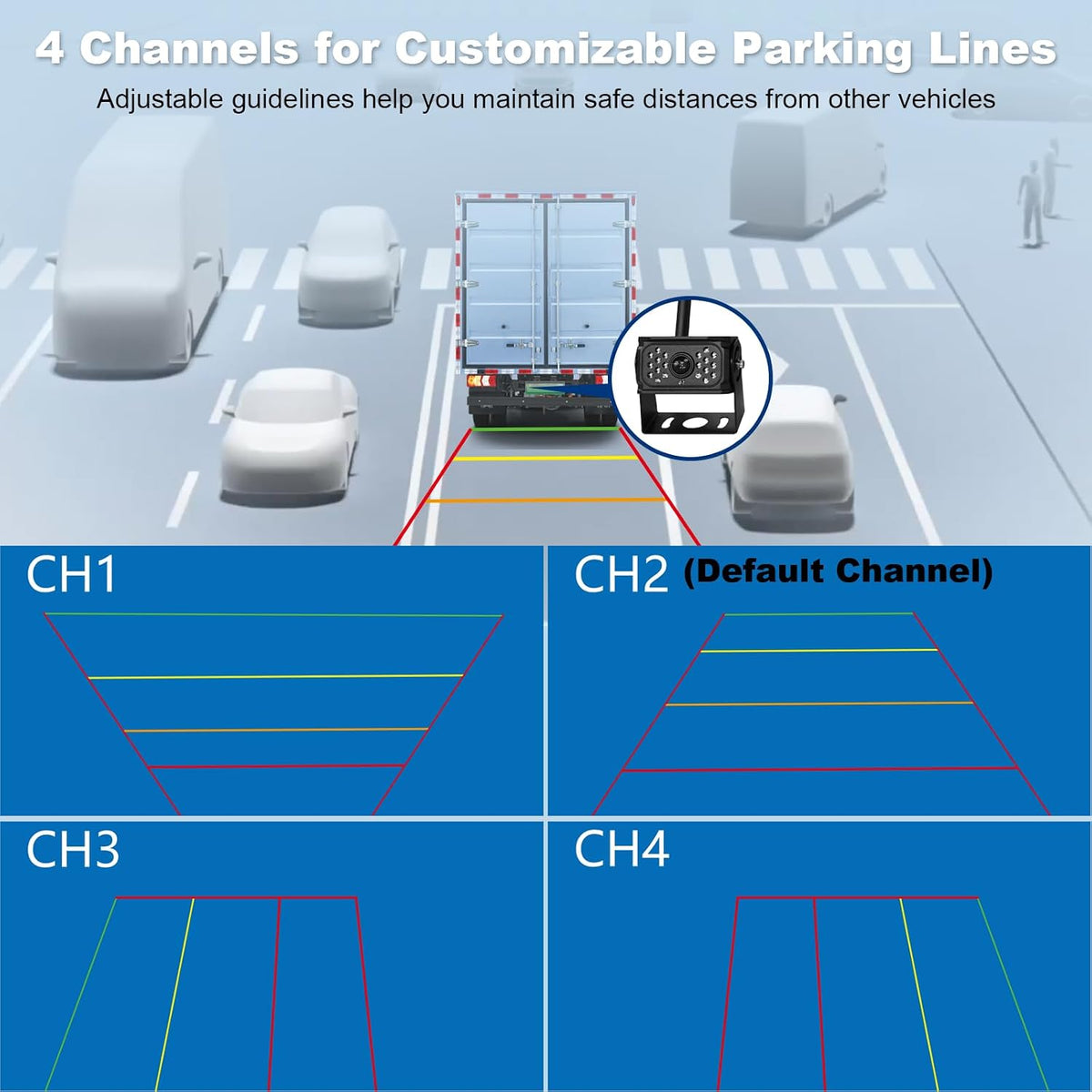

• Customizable Parking Lines: Parking assist lines and blind spot warning lines can be adjusted to suit the installation and viewing requirements.

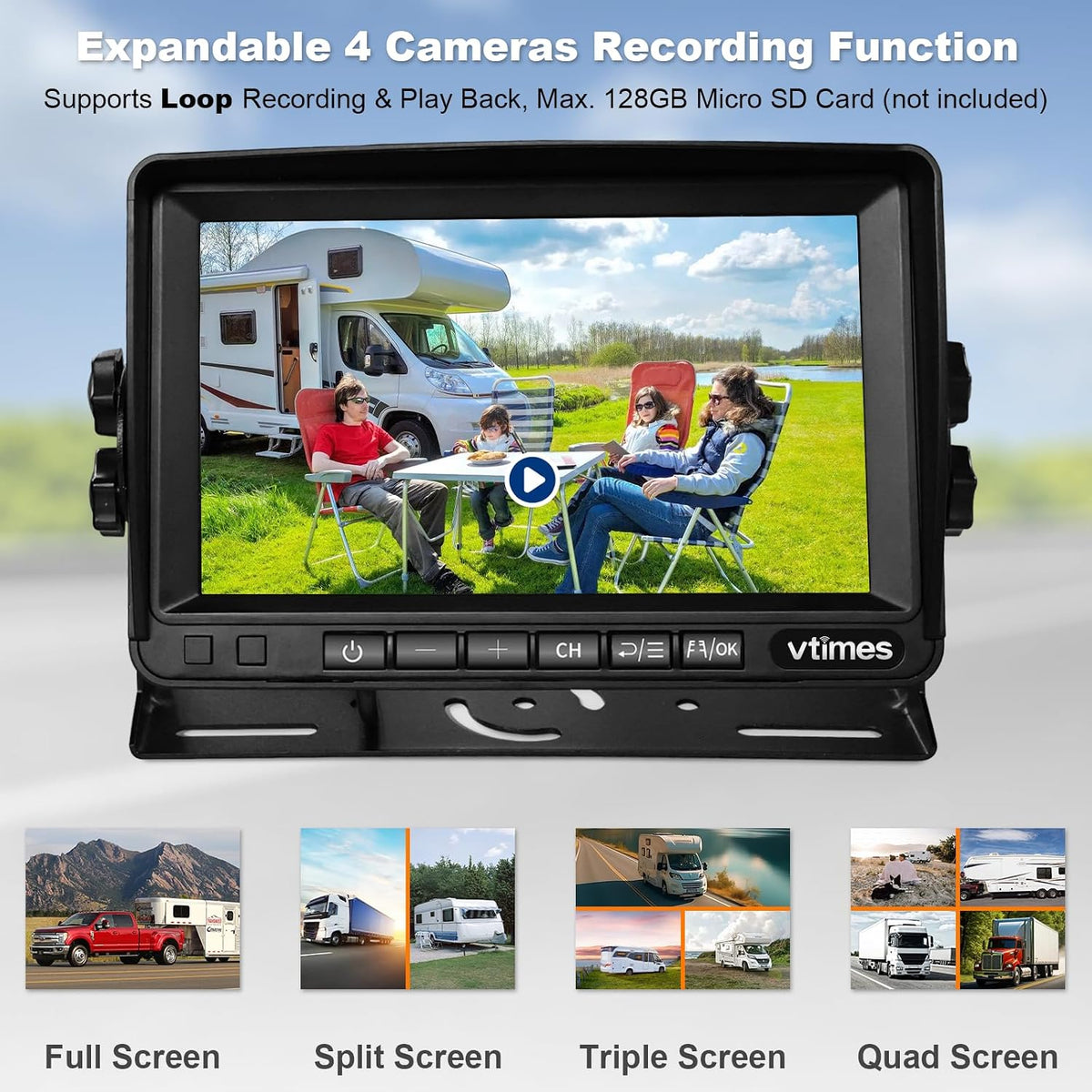

• DVR Loop Recording: Supports simultaneous recording across all four video channels. When the storage card reaches capacity, older footage is automatically overwritten to make room for new recordings.

• Recording & Playback: Supports continuous recording and playback when a compatible micro SD card is installed.

• IP69K Camera: All-metal camera construction is IP69K waterproof, shockproof, and designed for use in varying weather conditions.

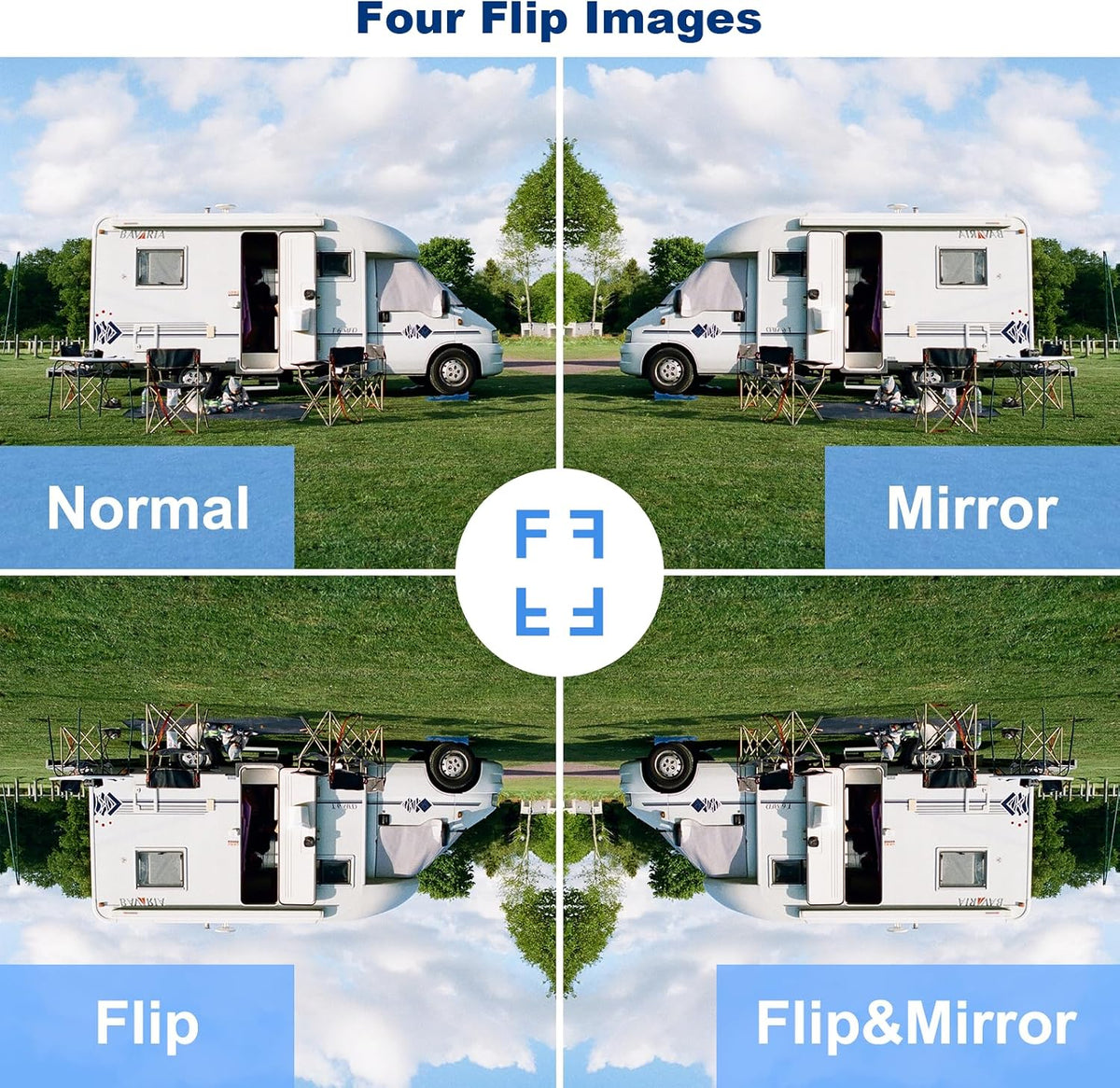

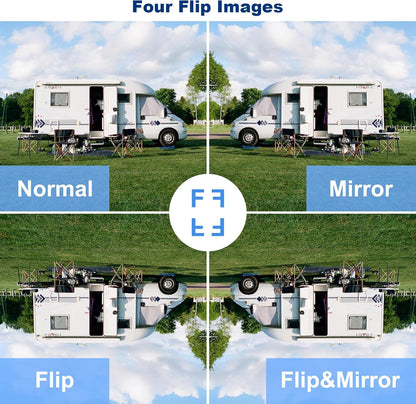

• Image Flip: Supports image-flip functionality for flexible camera positioning.

• Encrypted Transmission: FM encrypted transmission automatically selects an available channel for wireless data transfer.

Installation

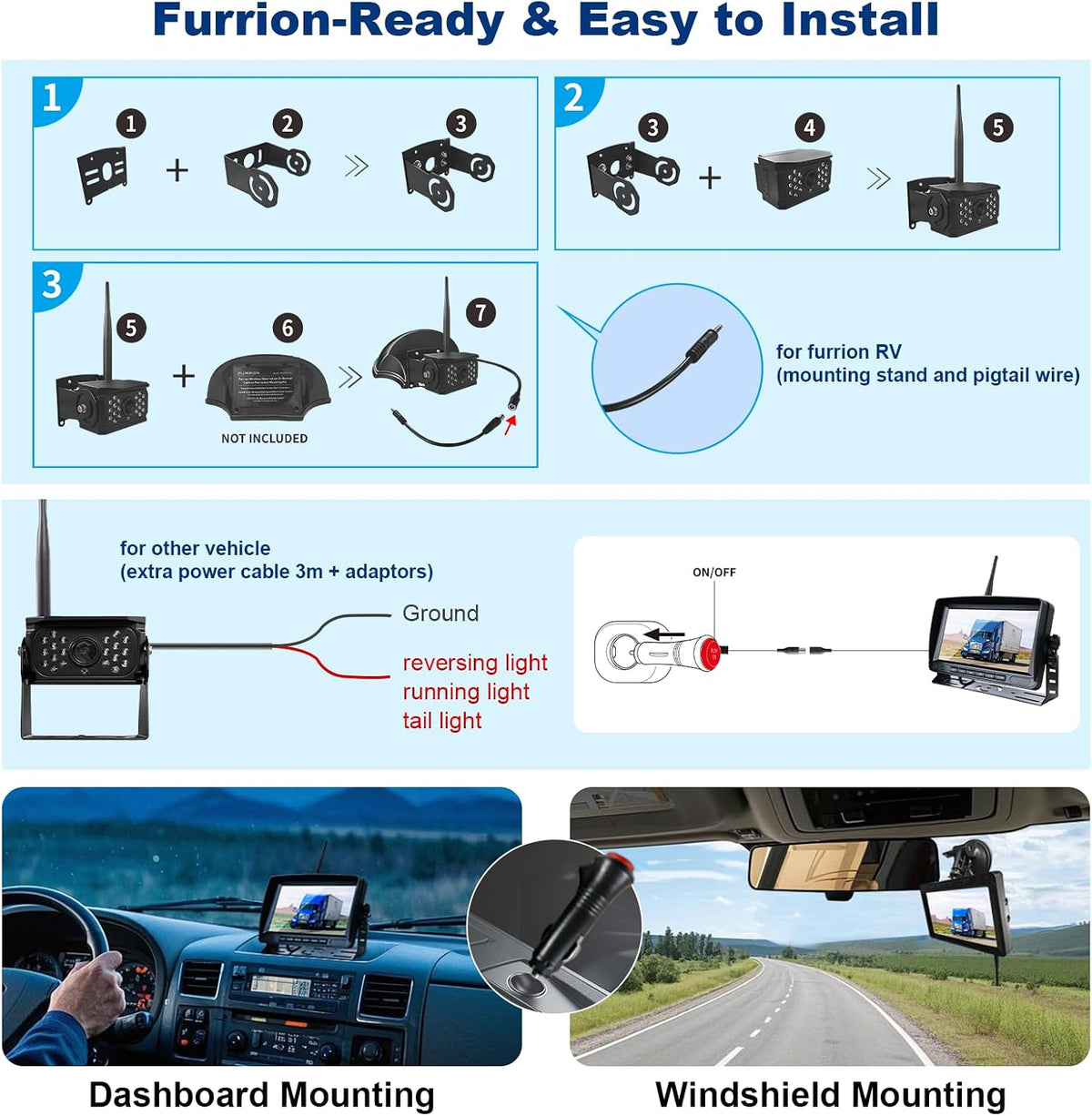

• Power Connection: Wireless operation refers to signal transmission only. The camera and monitor require separate wired power connections with supported input of DC 10V - 32V.

• Monitor Power: The monitor can connect to the vehicle's cigarette lighter.

• Camera Power: The backup camera can be connected to a tail light, reversing light, running light, or other suitable vehicle power source.

• Pre-Wired RV Installation: Includes a mounting bracket and pigtail wire for compatible pre-wired RV systems.

• System Testing: Before permanently mounting the camera, connect the wiring and test the system to confirm proper operation, image quality, and viewing angle.

• Default Channel: The system usually starts on Channel 2 rearview mode. After powering on, wait 10-30 secs and pair the camera using the pairing function on the monitor.

• Channel Changes: When repurposing the camera for another position, reset the system to factory settings, disconnect camera power for 5 seconds, restore power, and enter pairing mode.

• Interference: Other electronics such as GPS devices and dashcams may interfere with wireless signals. Keep the system within its supported signal range and avoid obstructions where possible.

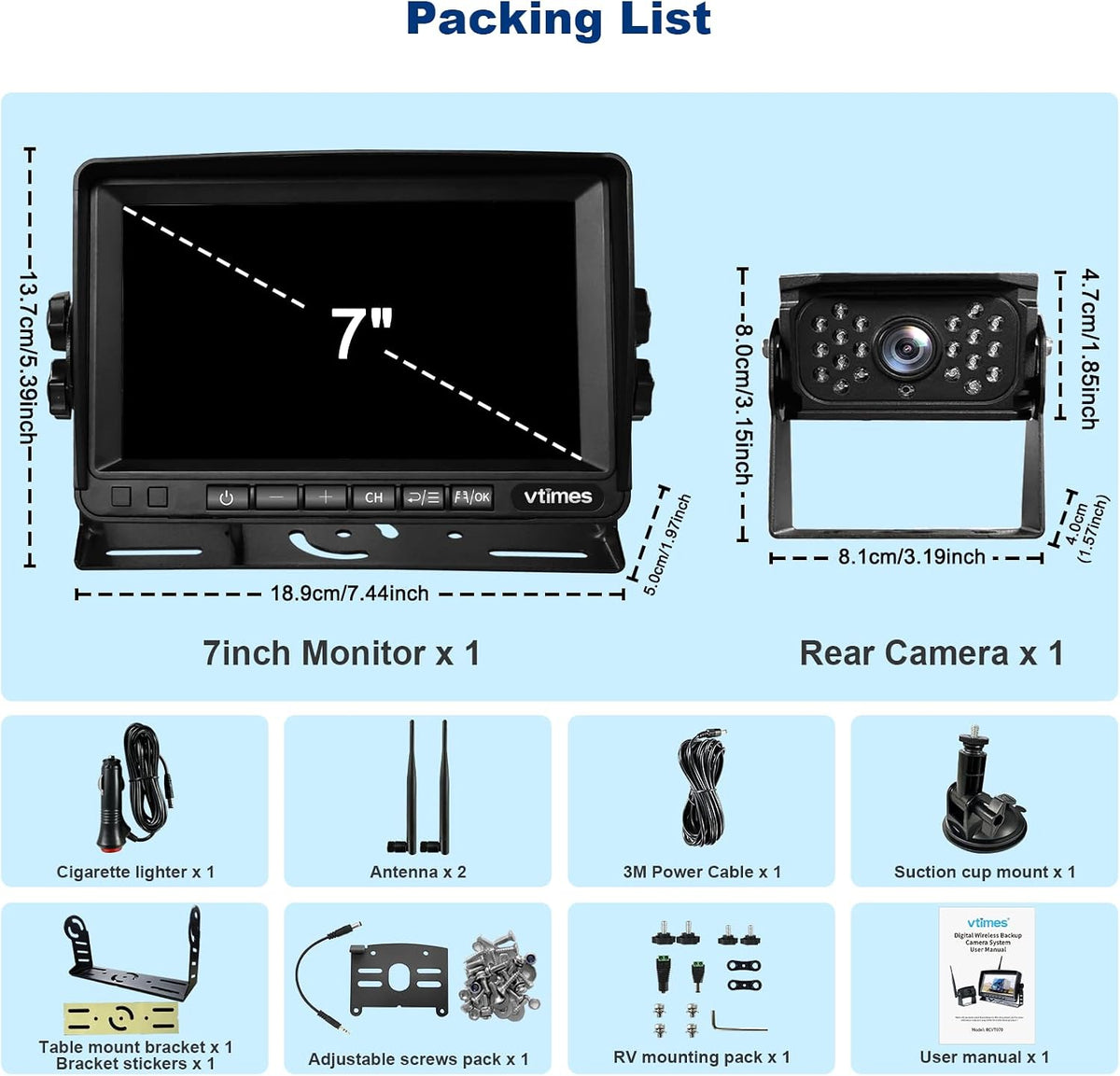

Package Contents

• Monitor: 1 × 7 Inch Monitor

• Camera: 1 × Backup Camera

• Power Accessories: 1 × Cigarette Lighter (DC10-32V), 1 × Hardwired Power Cable (3M)
